連桿瓦鏜床T8216B
http://viralses.com 更新時間：2016/1/20 13:42:10
連桿鏜床

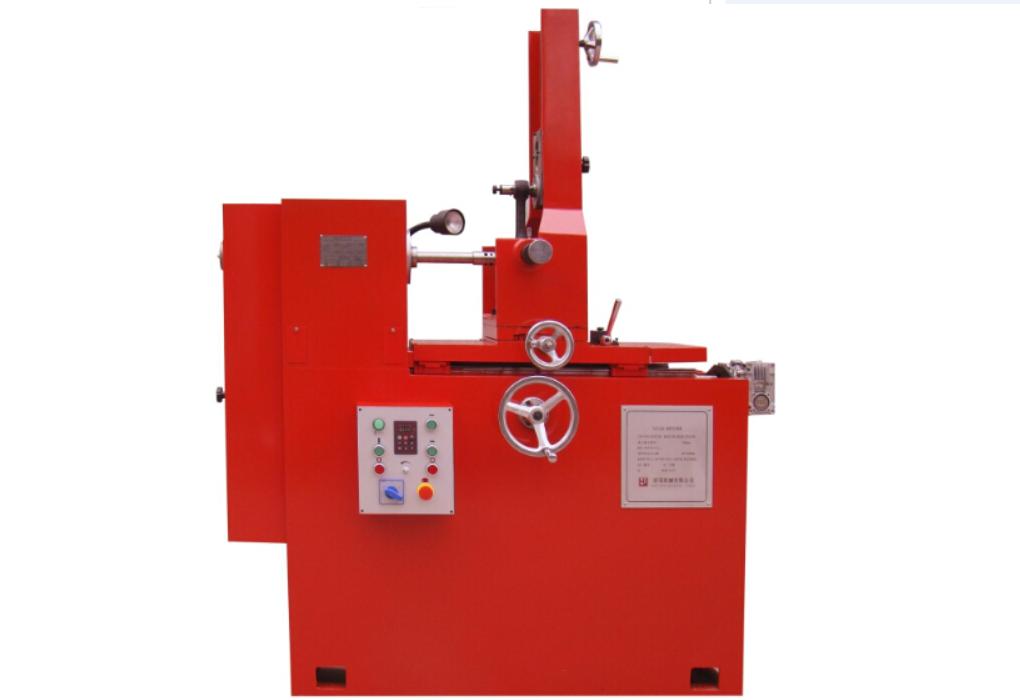

Con-rod boring machine T8216B
主要特點：
1.該機床可以采用自動或者手動進給加工，工作臺有減速電機和滾珠絲杠驅動，提供強大平穩的動力傳輸。
Automatic and manual table traverse controls both avaliable for this machine, table is driven by reduction motor and ball screws. provide powerful and smooth travels.
2.兩個托板裝備有直線導軌，精度高，壽命更長。
Both carriage adopt linera guidway, it can provide higher precision and longer life.
3.主軸采用雙速電機和3段塔輪驅動，總共可以組合成6種速度，以適應不同尺寸和材料的加工要求。‘
Main spindle is driven by double speed motor and 3 level pulley transmission. provide total 6 speed range. it can fit different size and material needed.

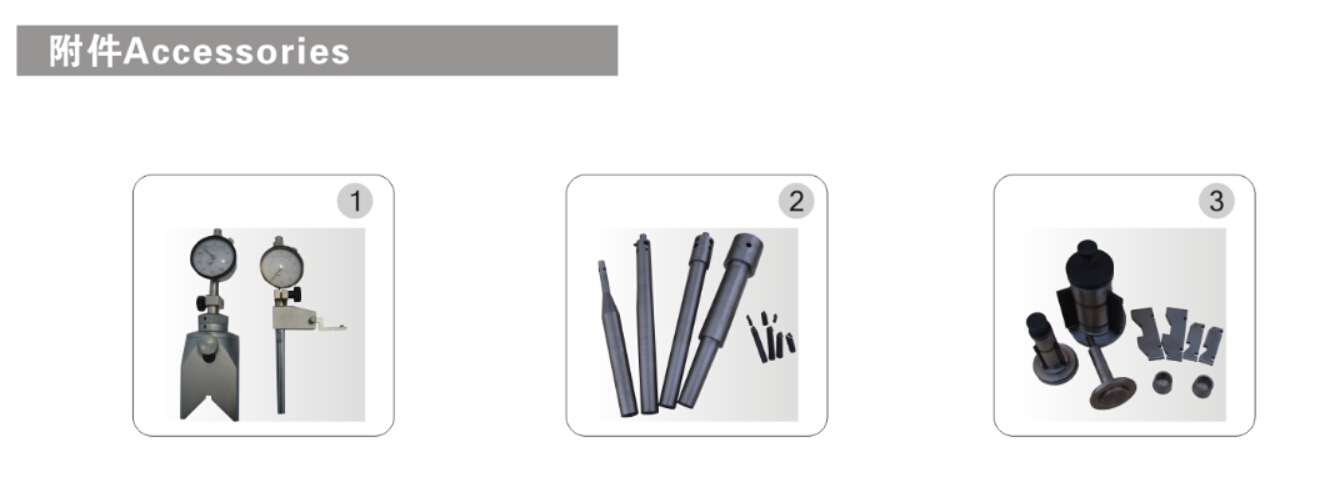

4.鏜刀，對中表，對刀表都是標準附件，使得機器使用起來更加得心應手
Boring tools, centering gauge, tool setting gauge were all standard equipment, makes your work comes easy.
|
